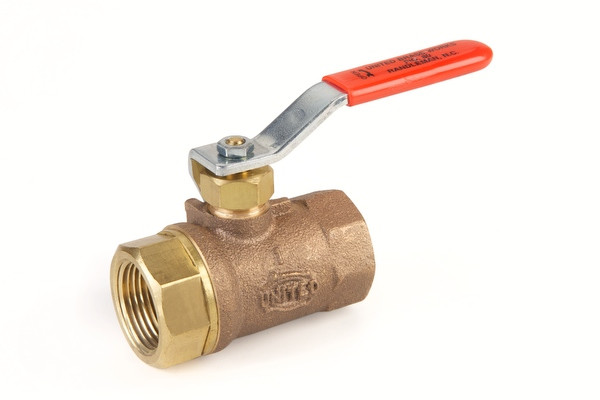

Model 80 – 2″
Model 80 – 2″
Applications: Water/Steam/Oil/Gas
Model 80 – 2″
Double Female
Complies with MSS-SP110-92
200 lbs. WSP at 406 ° Max
400 lbs. WOG
100% Pressure Tested
Threaded Ends
Blowout Proof Stem
1/4” – 1/2” Full Flow
3/4” – 2” Large Port Diameters
CRN OCO7135.2C
Double Female
Complies with MSS-SP110-92
200 lbs. WSP at 406 ° Max
400 lbs. WOG
100% Pressure Tested
Threaded Ends
Blowout Proof Stem
1/4” – 1/2” Full Flow
3/4” – 2” Large Port Diameters
CRN OCO7135.2C
Additional Info:
| Size | 2 in |
| B-Total Length | 4.41 in |
| E-Height | 3.56 in |
| C-Length | 2.14 in |
| D-Length | 2.27 in |
| A-Diameter | 1.50 in |
