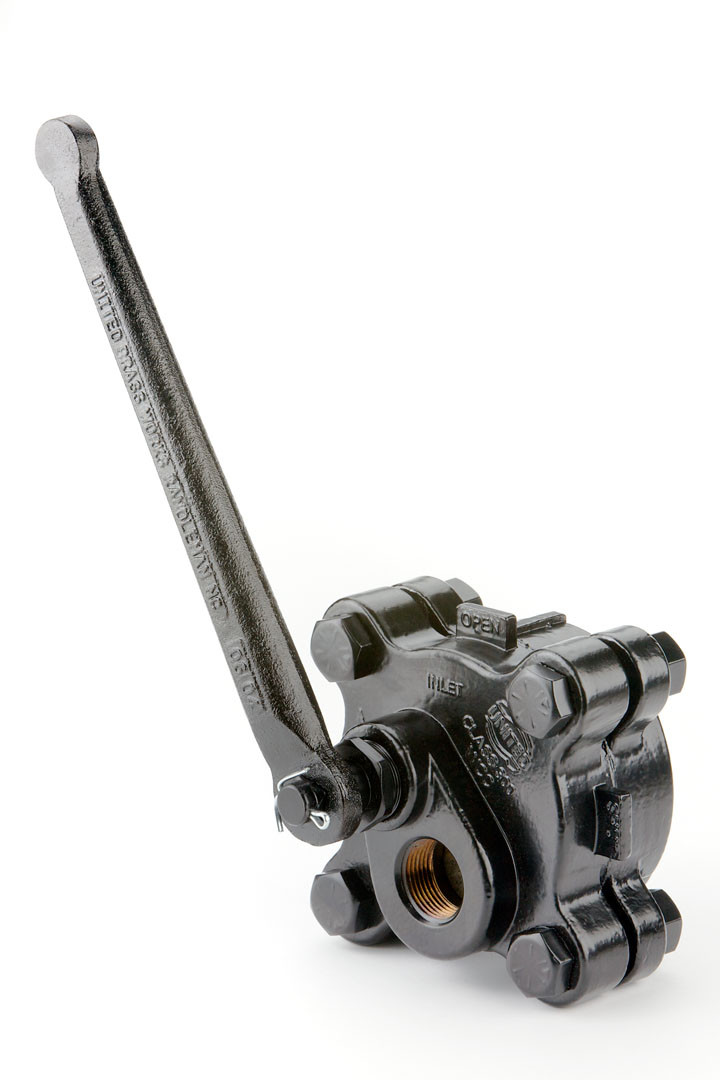

Model 425 - 1"


Model 425 - 1"

Double click on above image to view full picture

Zoom Out
Zoom In
Model 425 - 1"
Class 300
ANSI B16.34
600 psi Working Steam Pressure @ 500F
740 psi @ 100F
100% Pressure Tested
Maximum Boiler Blow-Off Pressure 480 psi per Sec. 1 Table A-361
Threaded Ends
High Temp. Powder Coating for Corrosion Resistance
CRM OCO7135.2, 24, 25, 26
CRM OEO2171.7, 79, 70, 78, 7AY, 7T, 7N

The United Brass quick opening boiler blow donw valve has been designed for the rugged service of boiler treatment and scale. The cast steel knife gate valve conforms to Class 300 of ANSI B16.34 and features a stainless steel seat and disc hardened to Rockwell 60. ASME Boiler and Pressure Vessel Code Sections 1 PG-42.1.122 and Power Piping Code AS




Specifications

Size

1 in

A

5.32 in

B

5.32 in

C

10.00 in

Valve Type

Gate

End Connection

Threaded

Mea Approved

No

MSS Compliant

No

Canadian Registration

Yes

Pressing Machine Part

No
