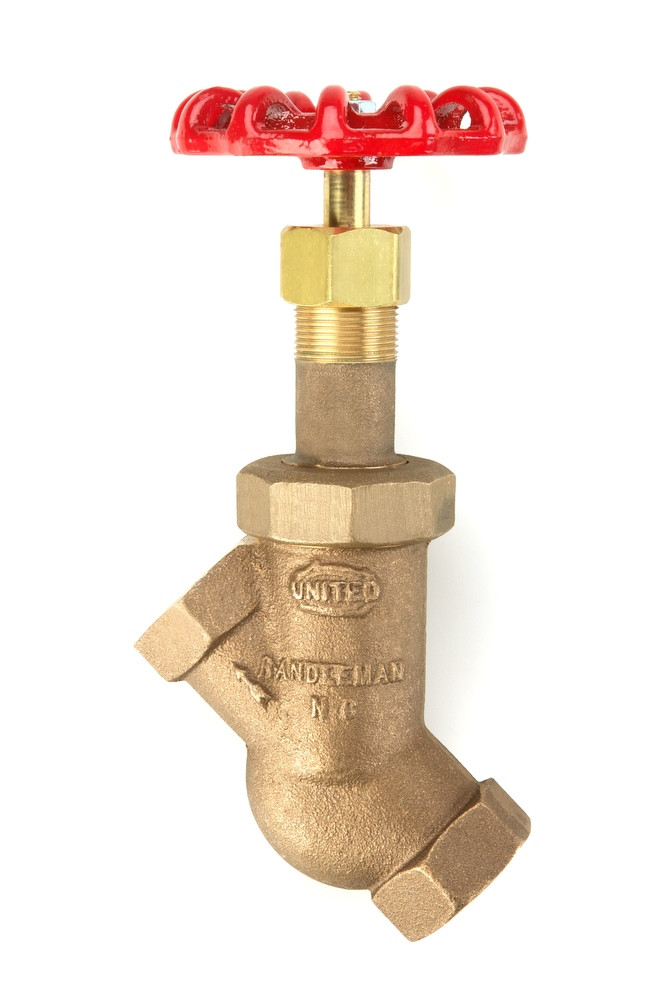

Model 325U - 1 1/2"


Model 325U - 1 1/2"

Double click on above image to view full picture

Zoom Out
Zoom In
Complies with MSS-SP-80-97
300 WSP
600 WOG
Non-Shock Service
100% Pressure Tested
Threaded Ends
Rising Stem
Swivel Disc Holder
Seat & Disc 400-500 Brinnell Stainless Steel
Max Pressure 390 PSI @ 500 F
Max Pressure for Boiler Blow-Off 312 PSI

Care must be taken in blow off piping so that no water hammer effect causes shockto the “Y” blow off valve, especially in cases where a boiler has two blow-off lines.In such cases both lines should be piped to a common set of blow off valves or eachblow off line should be piped separately to the blow down separator. Excessive waterhammer or shock can destroy valves and piping and could cause injury.








Specifications

Size

1 1/2 in

A - Total Length

6.25 in

B - Height

7.75 in

Ship Weight

8.60 lb

Quantity per Carton

2

Valve Type

Globe Valve

End Connection

Threaded

Application

Water/Steam/Oil/Gas

Stem Type

Rising

Ul Listed

No

FM Approved

No

Mea Approved

No

MSS Compliant

Yes

Bonnet Type

Union

Canadian Registration

Yes

Pressing Machine Part

No
